Search results 1 to 50 of 208

Photo	Brand BLISS BRET BRUDERER DIRINLER MAKINA EMG FRESAN LETAC NICALEX OMERA OMERA Roff PRESSIX REMIREMONT ROSS SANGIACOMO /	Product Range	Product	Request further information	Type of Frame	Force (kN) Min Max	Eccentric Press	Rack Press	Quantity of Connecting Rods Min Max	Min Stroke (mm) Min Max	Max Stroke (mm) Min Max	Min Strike Rate (strikes/min) Min Max	Max Strike Rate (strikes/min) Min Max	Max Die Height (mm) Min Max	Slide Adjustment (mm) Min Max	Throat Depth (mm) Min Max	Distance Slide - Table (mm) Min Max	Distance Between Uprights (mm) Min Max	Slide Width (mm) Min Max	Slide Depth (mm) Min Max	Lower Table Width (mm) Min Max	Lower Table Depth (mm) Min Max	Max Engine Power (kW) Min Max	Weight (kg) Min Max	Machine Length (mm) Min Max	Machine Width (mm) Min Max	Machine Height (mm) Min Max

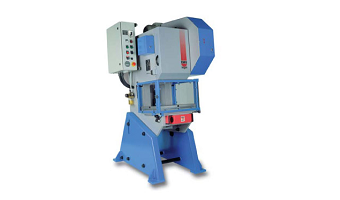

	EMG		25 T - -	More info	Col de Cygne	250	No	No	0	5	75	0	140	262	60	210	0	0	0	0	550	400	2.2	1400	1080	1177	1990

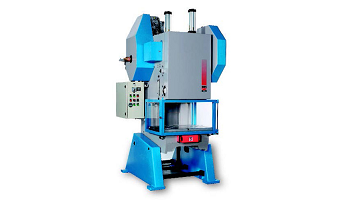

	EMG		80 T - -	More info	Col de Cygne	800	No	No	0	8	120	0	0	332	100	300	0	0	0	0	850	600	7.5	5000	1385	1705	2730

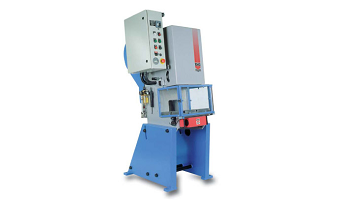

	EMG		15 T - -	More info	Col de Cygne	150	No	No	0	5	75	0	140	261	50	180	0	0	0	0	450	320	1.1	900	890	910	1915

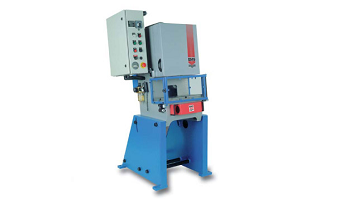

	EMG		6 T - -	More info	Col de Cygne	60	No	No	0	4	40	0	240	178	30	120	0	0	0	0	450	220	0.5	450	860	855	1745

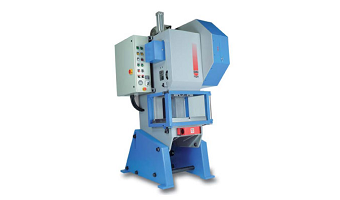

	EMG		45 T - -	More info	Col de Cygne	450	No	No	0	6	100	0	130	299	70	220	0	0	0	0	650	430	5.5	3100	930	1482	2470
-	DIRINLER MAKINA	CDCS P	CDCS 251 P - -	More info	Col de Cygne	250	Yes	No	0	10	65	0	150	285	0	230	0	0	275	185	560	400	4	0	1700	925	2065
-	REMIREMONT	PA	PA 200 - -	More info	Arcades	2500	No	No	0	20	180	30	90	0	140	0	0	0	0	0	0	0	22	23000	1900	1900	4100
-	PRESSIX	CNR6	130 CNR6 - -	More info	Col de Cygne	1300	No	No	0	13	160	27	80	0	110	405	430	0	550	800	765	1200	15	13000	3490	2270	1720
-	SANGIACOMO	RCE	T350 RCE - -	More info	Col de Cygne	3500	Yes	No	0	20	250	20	50	0	0	0	800	0	880	1250	1000	1800	0	0	0	0	0
-	LETAC	DM DB	T200DM-DB - -	More info	Arcades	2000	Yes	No	2	20	200	35	80	0	0	0	500	0	1650	960	1700	1000	0	0	0	0	0
-	BLISS BRET	PCK	PCK 32 - -	More info	Col de Cygne	3200	No	No	0	20	240	35	70	450	150	485	0	0	0	0	0	0	37	28000	2300	2400	4600
-	BLISS BRET	2PACK	2 PACK 50 - -	More info	Arcades	5000	No	No	2	20	240	35	70	700	150	0	0	2700	0	0	0	0	55	70000	3700	3100	5400
-	REMIREMONT	PF	PF 63 - -	More info	Col de Cygne	630	No	No	0	6	100	60	120	0	80	0	0	0	0	0	0	0	7.5	6300	1450	1410	2800
-	SANGIACOMO	DM-DB	T250 DM-DB 2R - -	More info	Arcades	2500	Yes	No	2	0	300	14	36	0	0	0	550	0	2000	1150	1950	1150	0	0	0	0	0
-	BLISS BRET	2PACK	2 PACK 25 - -	More info	Arcades	2500	No	No	2	20	200	40	80	600	150	0	0	2150	0	0	0	0	37	40000	3400	2600	4400
-	LETAC	EUROPRESS	EP-4 320/2200 - -	More info	Arcades	3200	Yes	No	0	0	30	100	430	0	70	0	0	0	0	0	0	0	0	0	0	0	0
-	LETAC	PR	PR15 C - -	More info	Col de Cygne	150	Yes	No	0	8	60	88	220	0	0	0	260	0	104	230	300	400	0	0	0	0	0
-	LETAC	ANEX	ANEX 40HCE - -	More info	-	400	No	No	0	0	32	0	1200	0	50	0	0	0	0	0	0	0	0	8000	0	0	0
-	LETAC	T RCE	T100 RCE - -	More info	Col de Cygne	1000	Yes	No	0	17	180	30	75	0	0	0	520	0	500	680	650	1100	0	0	0	0	0
-	LETAC	FLEXcam	FLEX 40WCE - -	More info	-	400	No	No	0	0	36	0	1100	0	50	0	0	0	0	0	0	0	0	9800	0	0	0
-	REMIREMONT	PVA	PVA 063 - -	More info	Col de Cygne	630	No	No	0	20	120	60	160	0	80	0	0	0	0	0	0	0	5.5	6300	940	1620	2685
-	REMIREMONT	PAP	PAP 200 - -	More info	Arcades	2000	No	No	2	20	180	40	120	0	140	0	0	0	0	0	0	0	37	43000	3500	2100	5000
-	SANGIACOMO	DM-DB	T125 DM-DB - -	More info	Arcades	1250	Yes	No	2	14	150	35	90	0	0	0	450	0	1350	800	1300	800	0	0	0	0	0
-	SANGIACOMO	RCE	T50 RCE - -	More info	Col de Cygne	500	Yes	No	0	12	110	40	100	0	0	0	400	0	300	450	440	750	0	0	0	0	0
-	REMIREMONT	PA	PA 500 - -	More info	Arcades	5000	No	No	0	20	300	20	60	0	180	0	0	0	0	0	0	0	55	63000	3350	2750	5300
-	PRESSIX	DM2CC	200 DM2CC - -	More info	Arcades	2000	Yes	No	0	20	220	30	140	0	150	0	550	0	0	0	1100	1800	30	27500	0	0	0
-	BLISS BRET	2PACK	2 PACK 16 - -	More info	Arcades	1600	No	No	2	20	180	40	80	500	100	0	0	1650	0	0	0	0	21	22000	2400	2300	4000
-	LETAC	DM SB	T160DM-SB - -	More info	Arcades	1600	Yes	No	1	15	220	24	60	0	0	0	500	0	1400	800	1400	800	0	0	0	0	0
-	BLISS BRET	PCK	PCK 10 - -	More info	Col de Cygne	1000	No	No	0	20	180	50	100	400	100	335	0	0	0	0	0	0	11	12000	1800	1750	3650
-	REMIREMONT	PAP	PAP 63 - -	More info	Arcades	630	No	No	2	8	100	60	180	0	80	0	0	0	0	0	0	0	15	20000	2200	1900	4200
-	REMIREMONT	PF	PF 400 - -	More info	Col de Cygne	4000	No	No	0	20	240	40	40	0	150	0	0	0	0	0	0	0	37	47000	2500	3000	4850
-	PRESSIX	CNV4	65 CNV4 - -	More info	Col de Cygne	650	No	No	0	8	120	60	180	0	100	280	320	0	580	820	340	470	4	5000	2971	1568	1314
-	SANGIACOMO	DM-DB	T200 DM-DB - -	More info	Arcades	2000	Yes	No	2	20	200	35	80	0	0	0	500	0	1650	960	1700	1000	0	0	0	0	0
-	LETAC	DM DB	T500DM-DB - -	More info	Arcades	5000	Yes	No	2	23	250	20	60	0	0	0	700	0	2600	1400	2550	1400	0	0	0	0	0
-	BLISS BRET	PAP	PAP 80 - -	More info	-	800	No	No	0	60	60	0	60	420	0	0	0	0	0	0	1800	450	22	0	0	0	0
-	LETAC	ANEX	ANEX 80WCE - -	More info	-	800	No	No	0	0	32	0	500	0	80	0	0	0	0	0	0	0	0	22000	0	0	0
-	REMIREMONT	PFVA	PFVA 200 - -	More info	Col de Cygne	2000	No	No	0	20	220	30	70	0	150	0	0	0	0	0	0	0	22	23000	1260	2080	3810
-	NICALEX	NC	NC-63-H - -	More info	Col de Cygne	630	No	No	0	8	100	40	120	250	80	280	0	0	0	0	700	400	5.5	5000	1285	850	2895
-	SANGIACOMO	DM-SB	T100 DM-SB - -	More info	Arcades	1000	Yes	No	1	17	180	30	75	0	0	0	400	0	1100	650	1100	650	0	0	0	0	0
-	SANGIACOMO	CE	T50 CE - -	More info	Col de Cygne	500	Yes	No	0	12	180	72	110	0	0	0	400	0	300	450	440	750	0	0	0	0	0
-	LETAC	EUROPRESS	EP-4 550/3200 - -	More info	Arcades	5500	Yes	No	0	0	40	60	260	0	100	0	0	0	0	0	0	0	0	0	0	0	0
-	LETAC	PR	PR50 C - -	More info	Col de Cygne	500	Yes	No	0	12	110	72	180	0	0	0	400	0	300	450	440	750	0	0	0	0	0
-	PRESSIX	DM2CC	800 DM2 - -	More info	Arcades	8000	Yes	No	0	0	360	8	30	0	400	0	1200	0	0	0	1500	3600	110	145000	0	0	0
-	FRESAN	FP	FP 30P - -	More info	Col de Cygne	300	Yes	No	0	0	60	0	140	0	0	200	300	0	0	0	400	600	3	18500	1420	1020	2050
-	LETAC	T RCE	T250 RCE - -	More info	Col de Cygne	2500	Yes	No	0	15	220	20	50	0	0	0	780	0	750	1100	900	1600	0	0	0	0	0
-	LETAC	TMDPRESS	TMD 4500 - -	More info	-	4500	No	Yes	0	0	150	35	70	0	50	0	0	0	0	0	0	0	0	60000	0	0	0
-	REMIREMONT	PVA	PVA 010 - -	More info	Col de Cygne	100	No	No	0	6	50	60	180	0	35	0	0	0	0	0	0	0	0.75	840	4500	950	1645
-	REMIREMONT	PAB	PAB 320 - -	More info	Arcades	3200	No	No	2	20	240	30	90	0	150	0	0	0	0	0	0	0	45	60000	3900	2600	4700
-	DIRINLER MAKINA	CDCS P	CDCS 401 P - -	More info	Col de Cygne	400	Yes	No	0	5	75	150	150	280	0	230	0	0	360	225	630	450	4	0	1700	1100	2050
-	REMIREMONT	PA	PA 160 - -	More info	Arcades	1600	No	No	0	20	150	40	120	0	120	0	0	0	0	0	0	0	15	17000	1750	1850	3700
