Stud Welding Power Sources C2G SOUDAGE INNOVATION

SGC 66 P05

JUPITER 800 I aff

SGC1000

SGC1500

SGC2000

JUPITER 400I

HERA1000

HERA1500

HERA2000

HERA2500

JUPITER 800 I

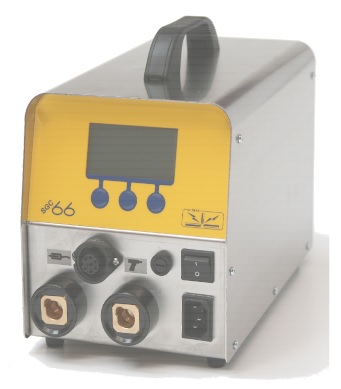

SGC 66 C05 Stud Welding Power Sources

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 2
Max Stud Diameter (mm) 6
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 0

Max Welding Power (A) 0
Min Charging Voltage (V) 50
Max Charging Voltage (V) 200
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 0

SGC 66 P05 Stud Welding Power Sources

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 2
Max Stud Diameter (mm) 8
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 0

Max Welding Power (A) 0
Min Charging Voltage (V) 50
Max Charging Voltage (V) 200
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 6.5

JUPITER 800 I aff Stud Welding Power Sources

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 1
Max Stud Diameter (mm) 14
Min Welding Rate (studs/min) 4
Max Welding Rate (studs/min) 4
Load Bearing Capacity (µF) 0
Min Welding Power (A) 0

Max Welding Power (A) 800
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 12

SGC1000 Stud Welding Power Sources

Poste à souder les goujons par Décharge de Condensateurs. Capacité de M3 à M6.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 6
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 48000
Min Welding Power (A) 0

Max Welding Power (A) 0
Min Charging Voltage (V) 40
Max Charging Voltage (V) 230
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 16

SGC1500 Stud Welding Power Sources

Poste à souder les goujons par Décharge de Condensateurs. Capacité de M3 à M8.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 8
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 72000
Min Welding Power (A) 0

Max Welding Power (A) 0
Min Charging Voltage (V) 40
Max Charging Voltage (V) 230
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 19

SGC2000 Stud Welding Power Sources

Poste à souder les Goujons par Décharge de Condensateurs. Capacité de M3 à M8, possibilité M10 à valider.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 10
Min Welding Rate (studs/min) 30
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 96000
Min Welding Power (A) 0

Max Welding Power (A) 0
Min Charging Voltage (V) 40
Max Charging Voltage (V) 230
Axis Speed (m/min) 0
Min Welding Time (ms) 0
Max Welding Time (ms) 0
Work Area L (mm) 0
Weight (kg) 24.5

JUPITER 400I Stud Welding Power Sources

Poste à souder les Goujons par Arc Fusion Forgeage. Poste portatif, idéal pour les chantiers. Capacité de M3 à M10.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) Arc Drawn
Weldable Materials -
Min Stud Diameter (mm) 2
Max Stud Diameter (mm) 10
Min Welding Rate (studs/min) 10
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 0

Max Welding Power (A) 400
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 5
Max Welding Time (ms) 1000
Work Area L (mm) 0
Weight (kg) 11.68

HERA1000 Stud Welding Power Sources

Poste à souder les goujons. Deux procédés de soudage : soit en Arc Fusion Forgeage, soit sous protection gazeuse SIG®. Version modulable

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 12
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 100

Max Welding Power (A) 1000
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 10
Max Welding Time (ms) 2000
Work Area L (mm) 0
Weight (kg) 41.78

HERA1500 Stud Welding Power Sources

Poste à souder les goujons. Deux procédés de soudage possible : Arc Fusion Forgeage, SIG®. Version modulable.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 16
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 100

Max Welding Power (A) 1500
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 10
Max Welding Time (ms) 2000
Work Area L (mm) 0
Weight (kg) 48.59

HERA2000 Stud Welding Power Sources

Poste à souder les goujons. Deux procédés de soudage possible : Arc Fusion Forgeage et SIG®. Version modulable.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 20
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 100

Max Welding Power (A) 2000
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 10
Max Welding Time (ms) 2000
Work Area L (mm) 0
Weight (kg) 55.39

HERA2500 Stud Welding Power Sources

Poste à souder les goujons. Deux procédés de soudage possible : Arc Fusion Forgeage et SIG®. Version modulable.

Specifications

Welding Techniques (Short Cycle/ Fusion Forging/Capacitor Discharge) -
Weldable Materials -
Min Stud Diameter (mm) 3
Max Stud Diameter (mm) 25
Min Welding Rate (studs/min) 0
Max Welding Rate (studs/min) 0
Load Bearing Capacity (µF) 0
Min Welding Power (A) 100

Max Welding Power (A) 2500
Min Charging Voltage (V) 0
Max Charging Voltage (V) 0
Axis Speed (m/min) 0
Min Welding Time (ms) 10
Max Welding Time (ms) 2000
Work Area L (mm) 0
Weight (kg) 62.2

JUPITER 800 I Stud Welding Power Sources
